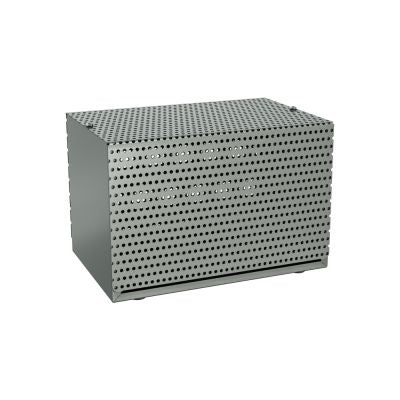

1100 VE151008 | Type 1 | General purpose ventilated enclosure - 15x10x8 | EXM
The 1100 VE ventilated enclosures are used for general purposes whenever the contents require ventilation. The enclosures are made of high quality 18 GA steel. There are knockouts at the top and bottom, and all three sides are fully ventilated. Mounting holes are provided in the back and the covers are fixed with screws. Enclosures are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base (other colors available). CSA Certified NEMA/EEMAC 1 / IP30
Made of high quality steel. The cover is secured by screws. Embossed mounting holes are provided on the back face of the enclosure. 3 faces of the enclosure are ventillated. 2 faces of the enclosure have knockouts. Paint color: ANSI 61 smooth gray. CSA certified. NEMA 1. IEC 60529 IP30.
Made of high quality steel. The cover is secured by screws. Embossed mounting holes are provided on the back face of the enclosure. 3 faces of the enclosure are ventillated. 2 faces of the enclosure have knockouts. Paint color: ANSI 61 smooth gray. CSA certified. NEMA 1. IEC 60529 IP30.
Resources
More Info
^^The 1100 VE series is used where the equipment does not require a high level of protection.$39.90
Original: $113.99
-65%1100 VE151008 | Type 1 | General purpose ventilated enclosure - 15x10x8 | EXM—
$113.99
$39.90
Description
The 1100 VE ventilated enclosures are used for general purposes whenever the contents require ventilation. The enclosures are made of high quality 18 GA steel. There are knockouts at the top and bottom, and all three sides are fully ventilated. Mounting holes are provided in the back and the covers are fixed with screws. Enclosures are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base (other colors available). CSA Certified NEMA/EEMAC 1 / IP30
Made of high quality steel. The cover is secured by screws. Embossed mounting holes are provided on the back face of the enclosure. 3 faces of the enclosure are ventillated. 2 faces of the enclosure have knockouts. Paint color: ANSI 61 smooth gray. CSA certified. NEMA 1. IEC 60529 IP30.
Made of high quality steel. The cover is secured by screws. Embossed mounting holes are provided on the back face of the enclosure. 3 faces of the enclosure are ventillated. 2 faces of the enclosure have knockouts. Paint color: ANSI 61 smooth gray. CSA certified. NEMA 1. IEC 60529 IP30.
Resources
More Info
^^The 1100 VE series is used where the equipment does not require a high level of protection.
